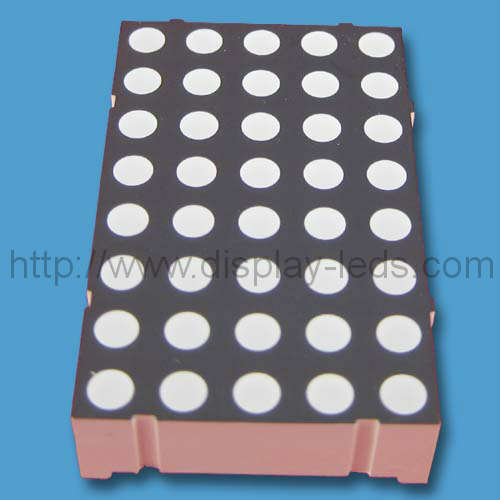

LM14058A/B Series
PCS
1000pcs

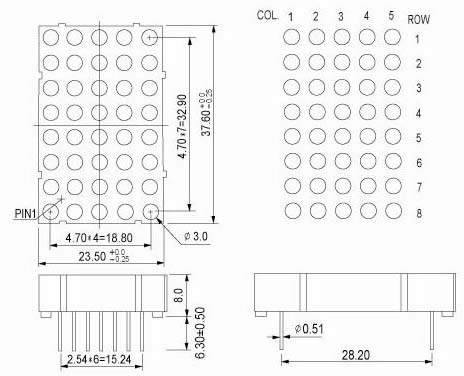

PDF Datashheet Download Package Dimensions and Internal Circuit：
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
Table1:
| Part No. | Chip | Iv@IF=20mA | ||||
| Cathode Row | Anode Row | Material | Color | WLD | One Dot | |
| Min. | Typ. | |||||
| LM12058AR | LM12058BR | GaAlAs | Super Red | 627 | 8 | 10 |
| LM12058AD | LM12058BD | GaAlAs | Hi-Red | 627 | 18 | 25 |
| LM12058AO | LM12058BO | GaAsP | Orange | 610 | 7 | 9 |
| LM12058AY | LM12058BY | GaAsP | Yellow | 588 | 8 | 10 |
| LM12058AG | LM12058BG | GaP | Green | 568 | 7 | 9 |
| LM12058AUR | LM12058BUR | AlGaInP | Ultra Red | 627 | 30 | 45 |
| LM12058AUO | LM12058BUO | AlGaInP | Ultra Orange | 610 | 45 | 60 |
| LM12058AUA | LM12058BUA | AlGaInP | Ultra Amber | 605 | 30 | 45 |
| LM12058AUY | LM12058BUY | AlGaInP | Ultra Yellow | 595 | 30 | 45 |
| LM12058AUG | LM12058BUG | AlGaInP | Ultra Green | 573 | 30 | 45 |
| LM12058APG | LM12058BPG | InGaN | Pure Green | 525 | 120 | 300 |
| LM12058AUB | LM12058BUB | InGaN | Ultra Blue | 470 | 30 | 45 |
| LM12058AUW | LM12058BUW | SMD | Ultra White | \ | 100 | 120 |
| Unit: | \ | \ | \ | nm | mcd | mcd |
