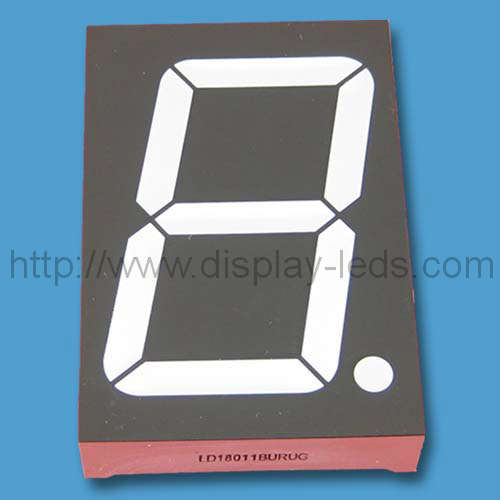

1.8 inch (45 mm) 7 segment LED Display

Quantity:



Inquire Add to Basket

Model:
LD18011A/B Series
Min order:
1000pcs

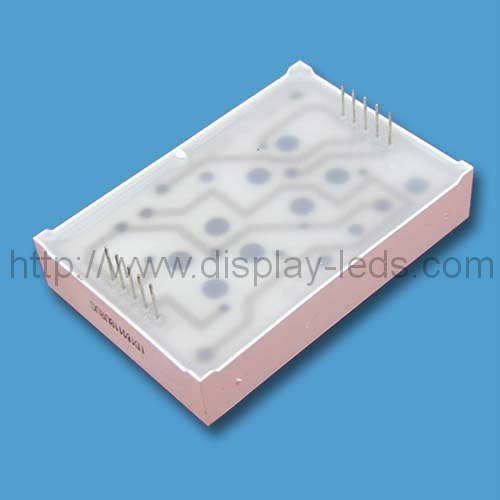

Pin 1 and 5 are common pins; static internal circuit PCB; 1.8 inch single digit seven segment LED display; both CA and CC versions are available.
Features:
1. 45 mm (1.8 inch) digit high
2. Excellent digit appearance
3. Wide viewing angle
4. Range of emitted colors
5. I.C. compatible
6. Low power consumption
7. Black face,White segment
8. RoHS compliant

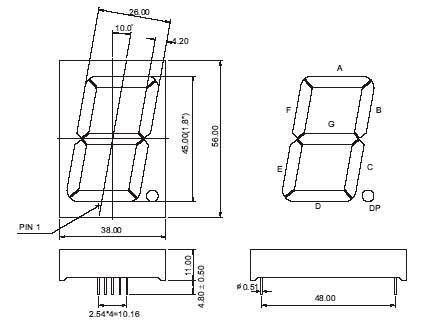

Package Dimensions and Internal Circuit：

Notes:

1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.

2. Specifications are subject to change without notice.

3. The gap between the reflector and PCB shall not exceed 0.25mm.

Table1:

Single Digit 7 Segment LED Display, Digit Height: 38.10mm(1.5inch), External Dimensions: 30.60x44.00x8.0mm (LxWxHmm)
Part No.		Chip			Iv@IF=20mA		Iv@IF=20mA
Common Cathode	Common Anode	Material	Color	WLD	One Seg		One DP
Common Cathode	Common Anode	Material	Color	WLD	Min.	Typ.	Min.	Typ.
LD15011AR	LD15011BR	GaAlAs	Super Red	640	12	15	8	10
LD15011AD	LD15011BD	GaAlAs	Hi-Red	640	27	37.5	18	25
LD15011AO	LD15011BO	GaAsP	Orange	625	10.5	13.5	7	9
LD15011AY	LD15011BY	GaAsP	Yellow	588	12	15	8	10
LD15011AG	LD15011BG	GaP	Green	568	10.5	13.5	7	9
LD15011AUR	LD15011BUR	AlGaInP	Ultra Red	640	45	67.5	30	45
LD15011AUO	LD15011BUO	AlGaInP	Ultra Orange	625	67.5	90	45	60
LD15011AUA	LD15011BUA	AlGaInP	Ultra Amber	605	45	67.5	30	45
LD15011AUY	LD15011BUY	AlGaInP	Ultra Yellow	595	45	67.5	30	45
LD15011AUG	LD15011BUG	AlGaInP	Ultra Green	573	45	67.5	30	45
LD15011APG	LD15011BPG	InGaN	Pure Green	525	180	450	120	300
LD15011AUB	LD15011BUB	InGaN	Ultra Blue	470	45	67.5	30	45
LD15011AUW	LD15011BUW	SMD	Ultra White	\	150	180	100	120
Unit:	\	\	\	nm	mcd	mcd	mcd	mcd
