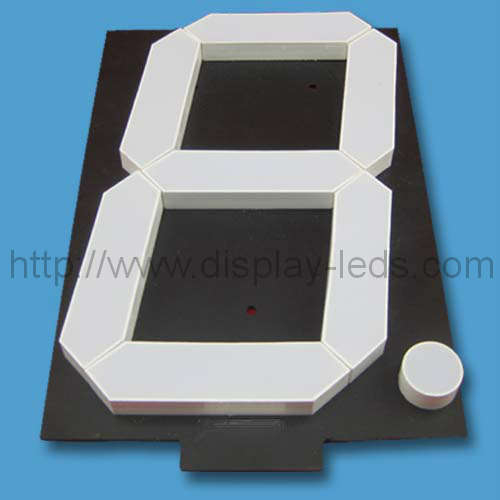

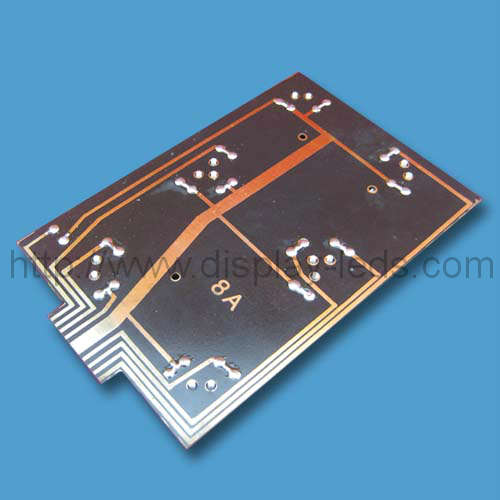

LD100011A/B Series
50pcs
Package Dimensions and Internal Circuit：
Notes:
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
Table1:
| Single Digit 7 Segment LED Display, Digit Height: 250.00mm(10.00inch), External Dimensions: 180.00x280.00.00mm (LxWmm) | ||||||
| Part No. | Chip | Iv@IF=20mA | ||||
| CC | CA | Material | Color | WLD | One Seg | |
| Min. | Typ. | |||||
| LD100011AR | LD100011BR | GaAlAs | Super Red | 640 | 240 | 300 |
| LD100011AD | LD100011BD | GaAlAs | Hi-Red | 640 | 540 | 750 |
| LD100011AO | LD100011BO | GaAsP | Orange | 625 | 210 | 270 |
| LD100011AY | LD100011BY | GaAsP | Yellow | 588 | 240 | 300 |
| LD100011AG | LD100011BG | GaP | Green | 568 | 210 | 270 |
| LD100011AUR | LD100011BUR | AlGaInP | Ultra Red | 640 | 900 | 1350 |
| LD100011AUO | LD100011BUO | AlGaInP | Ultra Orange | 625 | 1350 | 1800 |
| LD100011AUA | LD100011BUA | AlGaInP | Ultra Amber | 605 | 900 | 1350 |
| LD100011AUY | LD100011BUY | AlGaInP | Ultra Yellow | 595 | 900 | 1350 |
| LD100011AUG | LD100011BUG | AlGaInP | Ultra Green | 573 | 900 | 1350 |
| LD100011APG | LD100011BPG | InGaN | Pure Green | 525 | 3600 | 9000 |
| LD100011AUB | LD100011BUB | InGaN | Ultra Blue | 470 | 900 | 1350 |
| LD100011AUW | LD100011BUW | SMD | Ultra White | \ | 3000 | 3600 |
| Unit: | \ | \ | \ | nm | mcd | mcd |
Notes:
1. CC=Common Cathode
2. CA=Common Anode
Where you can you use them?
You can use them indoor or semi-outdoor, such as:
Car Park Game Machine High-speed Rail Station LED clock for public place
Package Dimensions and Internal Circuit：
Notes:
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
Table1:
| Single Digit 7 Segment LED Display, Digit Height: 250.00mm(10.00inch), External Dimensions: 180.00x280.00.00mm (LxWmm) | ||||||
| Part No. | Chip | Iv@IF=20mA | ||||
| CC | CA | Material | Color | WLD | One Seg | |
| Min. | Typ. | |||||
| LD100011AR | LD100011BR | GaAlAs | Super Red | 640 | 240 | 300 |
| LD100011AD | LD100011BD | GaAlAs | Hi-Red | 640 | 540 | 750 |
| LD100011AO | LD100011BO | GaAsP | Orange | 625 | 210 | 270 |
| LD100011AY | LD100011BY | GaAsP | Yellow | 588 | 240 | 300 |
| LD100011AG | LD100011BG | GaP | Green | 568 | 210 | 270 |
| LD100011AUR | LD100011BUR | AlGaInP | Ultra Red | 640 | 900 | 1350 |
| LD100011AUO | LD100011BUO | AlGaInP | Ultra Orange | 625 | 1350 | 1800 |
| LD100011AUA | LD100011BUA | AlGaInP | Ultra Amber | 605 | 900 | 1350 |
| LD100011AUY | LD100011BUY | AlGaInP | Ultra Yellow | 595 | 900 | 1350 |
| LD100011AUG | LD100011BUG | AlGaInP | Ultra Green | 573 | 900 | 1350 |
| LD100011APG | LD100011BPG | InGaN | Pure Green | 525 | 3600 | 9000 |
| LD100011AUB | LD100011BUB | InGaN | Ultra Blue | 470 | 900 | 1350 |
| LD100011AUW | LD100011BUW | SMD | Ultra White | \ | 3000 | 3600 |
| Unit: | \ | \ | \ | nm | mcd | mcd |
Notes:
1. CC=Common Cathode
2. CA=Common Anode
Where you can you use them?
You can use them indoor or semi-outdoor, such as:
Car Park Game Machine High-speed Rail Station LED clock for public place
