3210 RGB 1206 Side-View SMD Chip LED RoHS Compliant with 2.0(L) X1.2 (W) mm

Share to:

3210 RGB 1206 Side-View SMD Chip LED RoHS Compliant with 2.0(L) X1.2 (W) mm

Name: 3210 RGB 1206 Side-View SMD Chip LED RoHS Compliant with 2.0(L) X1.2 (W) mm
Brand: LITEKEY
Rating: 5.0 (30 reviews)

1206 3210 SMD Chip LED lamps from LITEKEY are available in small sizes and special configurations for automated PC board assembly and space-sensitive applications. The SMD Chip LED lamps are suitable for use in a wide variety of electronic equipment, including notebook computers, network systems, home appliances, and indoor signboard applications.

Availability:

Quantity:



Inquire Add to Basket

Model:
LLS1204RGBC-YG-LS
Brand:
LITEKEY
Code:
8541410000

Product Description

1206 RGB SMD Chip LED,3210 TopView SMD Chip LED

1206 SMD Chip LED lamps from LITEKEY are available in small sizes and special configurations for automated PC board assembly and space-sensitive applications. The SMD Chip LED lamps are suitable for use in a wide variety of electronic equipment, including notebook computers, network systems, home appliances, and indoor signboard applications.

Product Parameters

3.2*1.0*1.5mm
Luminous color and colloid: RGB/White colloid
Environmental protection products Complied With ROHS Directive
EIA standard packaging
Suitable for SMT automatic production
Suitable for reflow soldering process

·LED Photo

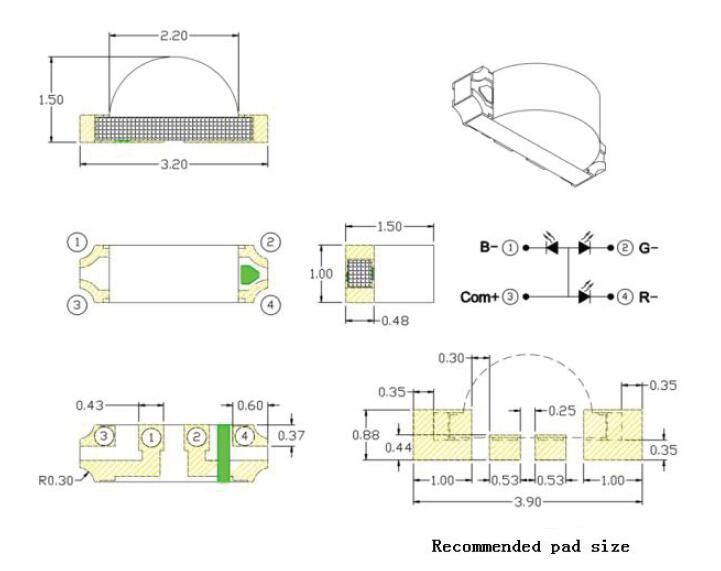

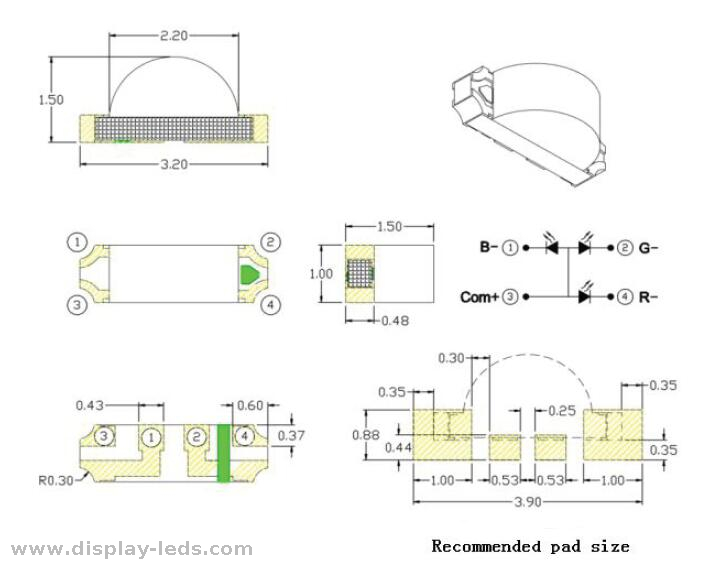

·Outline dimension

·Absolute Maximum Ratings (Ta=25ºC)

Item	Symbol	Maximum	Unit
Power Dissipation	Pd	50/80/80	mW
Continuous Forward Current	IF	3*25	mA
Pulsed Forward Current(1/10 Duty Cycle 0.1ms Pulse Width)	IFP	3*100	Ma
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-30 to+85	℃
Storage Temperature Range	Tstg	-40 to+90	℃
Junction Temperature	Tj	≤125	℃

* Note: Pulse width≤0.1ms, Duty≤1/10

·Electrical/Optical Characteristics (Ta=25ºC)

Item	Symbol	Condition		Min.	Typ.	Max	Unit
Forward Voltage	VF	IF=20mA	R	1.6	--	2.1	V
		IF=20mA	G	2.6	--	3.0
		IF=20mA	B	2.6	--	3.0
Luminous Intensity	IV	IF=20mA	R	--	40	--	mcd
		IF=20mA	G	--	230	--
		IF=20mA	B	--	50	--
Dominant Wavelength	λd	IF=20mA	R	619	--	625	nm
		IF=20mA	G	520	--	530
		IF=20mA	B	465	--	475
Viewing Angle	2θ1/2	IF=20mA		--	120	--	deg
Reverse Current	IR	VR =5V		--	--	1	uA

·Application

Medical equipment: endoscope,oximeter
Automotive electronics: backlight key light,indicator light
Industrial products: electronic instrument panel,industrial equipment
Smart home: white appliances, nixie tube LED
Communication products: mobile phone button lamp, router

Application of Chip SMD

Application of Chip SMD
