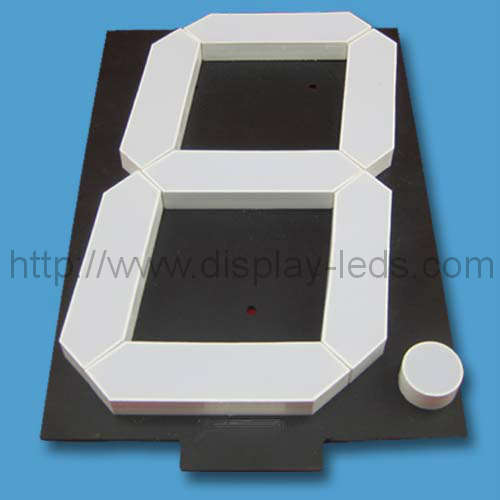

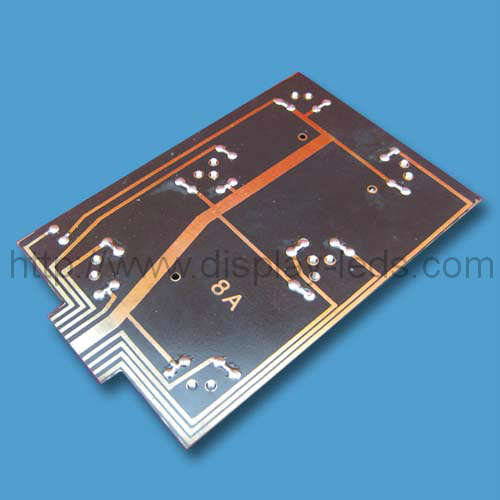

LD60011A/B Series
50pcs

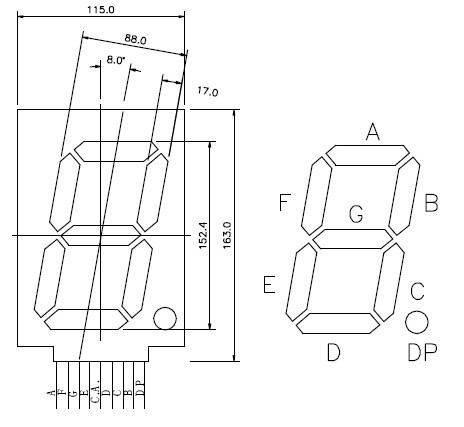

PDF Datashheet Download Package Dimensions and Internal Circuit：
Notes:
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
Table1:
| Single Digit 7 Segment LED Display, Digit Height: 152.40mm(6.00 inch), External Dimensions: 115.00x163.00mm (LxWmm) | ||||||||
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA | |||||
| CC[1] | CA[2] | Material | Color | WLD | One Seg | One DP | ||
| Min. | Typ. | Min. | Typ. | |||||
| LD60011AR | LD60011BR | GaAlAs | Super Red | 640 | 84 | 105 | 24 | 30 |
| LD60011AD | LD60011BD | GaAlAs | Hi-Red | 640 | 189 | 262.5 | 54 | 75 |
| LD60011AO | LD60011BO | GaAsP | Orange | 625 | 73.5 | 94.5 | 21 | 27 |
| LD60011AY | LD60011BY | GaAsP | Yellow | 588 | 84 | 105 | 24 | 30 |
| LD60011AG | LD60011BG | GaP | Green | 568 | 73.5 | 94.5 | 21 | 27 |
| LD60011AUR | LD60011BUR | AlGaInP | Ultra Red | 640 | 315 | 472.5 | 90 | 135 |
| LD60011AUO | LD60011BUO | AlGaInP | Ultra Orange | 625 | 472.5 | 630 | 135 | 180 |
| LD60011AUA | LD60011BUA | AlGaInP | Ultra Amber | 65 | 315 | 472.5 | 90 | 135 |
| LD60011AUY | LD60011BUY | AlGaInP | Ultra Yellow | 595 | 315 | 472.5 | 90 | 135 |
| LD60011AUG | LD60011BUG | AlGaInP | Ultra Green | 573 | 630 | 840 | 180 | 240 |
| LD60011APG | LD60011BPG | InGaN | Pure Green | 525 | 1260 | 3150 | 360 | 900 |
| LD60011AUB | LD60011BUB | InGaN | Ultra Blue | 470 | 315 | 472.5 | 90 | 135 |
| LD60011AUW | LD60011BUW | InGaN | Ultra White | \ | 1050 | 1260 | 300 | 360 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
Notes:
1. CC=Common Cathode
2. CA=Common Anode
Where you can you use them?
You can use them indoor or semi-outdoor, such as:
Car Park Game Machine High-speed Rail Station LED clock for public places
