LD70011A/B Series
50pcs
PDF Datashheet Download Package Dimensions and Internal Circuit：
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.

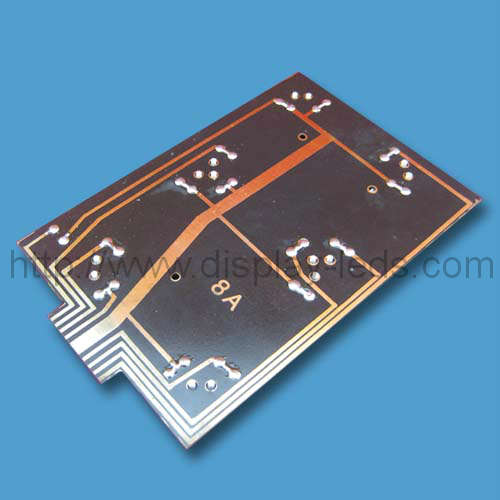

3. The gap between the reflector and PCB shall not exceed 0.25mm.
Table1:

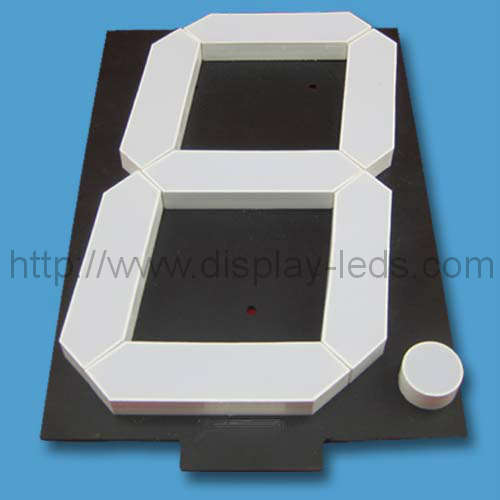

| Single Digit assembly 7 Segment LED Display, Digit Height: 176mm(7.00inch), External Dimensions: 206x130x15mm (LxWxHmm) | ||||||||
| Part No. | Chip | Iv@IF=20mA | Iv@IF=20mA | |||||
| Common Cathode | Common Anode | Material | Color | WLD | One Seg | One DP | ||
| Min. | Typ. | Min. | Typ. | |||||
| LD70011AR | LD70011BR | GaAlAs | Super Red | 640 | 126 | 157.5 | 30 | 37.5 |
| LD70011AD | LD70011BD | GaAlAs | Hi-Red | 640 | 283.5 | 393.75 | 67.5 | 93.75 |
| LD70011AO | LD70011BO | GaAsP | Orange | 625 | 110.25 | 141.75 | 26.25 | 33.75 |
| LD70011AY | LD70011BY | GaAsP | Yellow | 588 | 126 | 157.5 | 30 | 37.5 |
| LD70011AG | LD70011BG | GaP | Green | 568 | 110.25 | 141.75 | 26.25 | 33.75 |
| LD70011AUR | LD70011BUR | AlGaInP | Ultra Red | 640 | 472.5 | 708.75 | 112.5 | 168.75 |
| LD70011AUO | LD70011BUO | AlGaInP | Ultra Orange | 625 | 708.75 | 945 | 168.8 | 225 |
| LD70011AUA | LD70011BUA | AlGaInP | Ultra Amber | 605 | 472.5 | 708.75 | 112.5 | 168.75 |
| LD70011AUY | LD70011BUY | AlGaInP | Ultra Yellow | 595 | 472.5 | 708.75 | 112.5 | 168.75 |
| LD70011AUG | LD70011BUG | AlGaInP | Ultra Green | 573 | 472.5 | 708.75 | 112.5 | 168.75 |
| LD70011APG | LD70011BPG | InGaN | Pure Green | 525 | 1890 | 4725 | 450 | 1125 |
| LD70011AUB | LD70011BUB | InGaN | Ultra Blue | 470 | 472.5 | 708.75 | 112.5 | 168.75 |
| LD70011AUW | LD70011BUW | SMD | Ultra White | \ | 1575 | 1890 | 375 | 450 |
| Unit: | \ | \ | \ | nm | mcd | mcd | mcd | mcd |
Where you can you use them?
You can use them indoor or semi-outdoor, such as:
Car Park Game Machine High-speed Rail Station LED clock for public places
