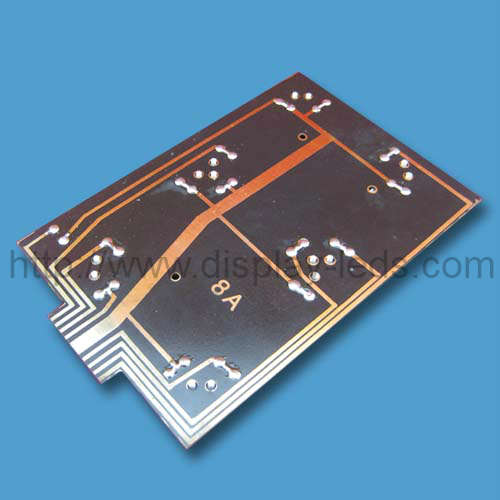

LD80011C/D Series
150pcs
Notes:
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.

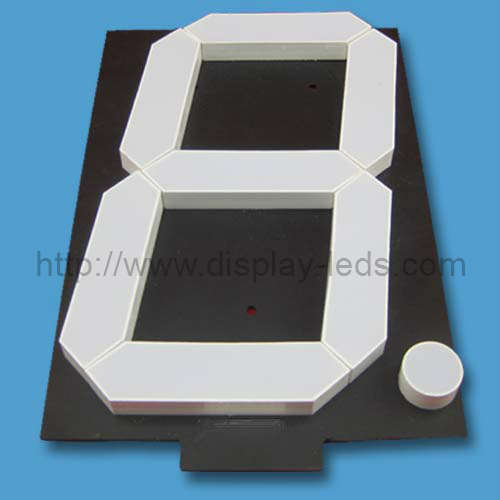

| Single Digit 7 Segment LED Display, Digit Height: 200.00mm(8.00inch), External Dimensions: 220.00x142.00mm (LxWmm) | ||||||
| Part No. | Chip | Iv@IF=20mA | ||||
| CC | CA | Material | Color | WLD | One Seg | |
| Min. | Typ. | |||||
| LD80011CR | LD80011DR | GaAlAs | Super Red | 640 | 108 | 135 |
| LD80011CD | LD80011DD | GaAlAs | Hi-Red | 640 | 243 | 337.5 |
| LD80011CO | LD80011DO | GaAsP | Orange | 625 | 94.5 | 121.5 |
| LD80011CY | LD80011DY | GaAsP | Yellow | 588 | 108 | 135 |
| LD80011CG | LD80011DG | GaP | Green | 568 | 94.5 | 121.5 |
| LD80011CUR | LD80011DUR | AlGaInP | Ultra Red | 640 | 405 | 607.5 |
| LD80011CUO | LD80011DUO | AlGaInP | Ultra Orange | 625 | 607.5 | 810 |
| LD80011CUA | LD80011DUA | AlGaInP | Ultra Amber | 605 | 405 | 607.5 |
| LD80011CUY | LD80011DUY | AlGaInP | Ultra Yellow | 595 | 405 | 607.5 |
| LD80011CUG | LD80011DUG | AlGaInP | Ultra Green | 573 | 405 | 607.5 |
| LD80011CPG | LD80011DPG | InGaN | Pure Green | 525 | 1620 | 4050 |
| LD80011CUB | LD80011DUB | InGaN | Ultra Blue | 470 | 405 | 607.5 |
| LD80011CUW | LD80011DUW | SMD | Ultra White | \ | 1350 | 1620 |
| Unit: | \ | \ | \ | nm | mcd | mcd |
1. CC=Common Cathode
2. CA=Common Anode
Where you can you use them?
You can use them indoor or semi-outdoor, such as:
Car Park Game Machine High-speed Rail Station LED clock for public places
Other available choices:
1. The internal circuit of 8 inch LED display can be customized according to customer's requirements.
2. Other available display dight height: 3 inch, 4 inch, 5 inch, 7 inch, 12 inch, 16 inch and 20 inch.
3. This 8 inch 7 segments display can be used both indoor and semi-outdoor LED screen.
Notes:
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
| Single Digit 7 Segment LED Display, Digit Height: 200.00mm(8.00inch), External Dimensions: 220.00x142.00mm (LxWmm) | ||||||
| Part No. | Chip | Iv@IF=20mA | ||||
| CC | CA | Material | Color | WLD | One Seg | |
| Min. | Typ. | |||||
| LD80011CR | LD80011DR | GaAlAs | Super Red | 640 | 108 | 135 |
| LD80011CD | LD80011DD | GaAlAs | Hi-Red | 640 | 243 | 337.5 |
| LD80011CO | LD80011DO | GaAsP | Orange | 625 | 94.5 | 121.5 |
| LD80011CY | LD80011DY | GaAsP | Yellow | 588 | 108 | 135 |
| LD80011CG | LD80011DG | GaP | Green | 568 | 94.5 | 121.5 |
| LD80011CUR | LD80011DUR | AlGaInP | Ultra Red | 640 | 405 | 607.5 |
| LD80011CUO | LD80011DUO | AlGaInP | Ultra Orange | 625 | 607.5 | 810 |
| LD80011CUA | LD80011DUA | AlGaInP | Ultra Amber | 605 | 405 | 607.5 |
| LD80011CUY | LD80011DUY | AlGaInP | Ultra Yellow | 595 | 405 | 607.5 |
| LD80011CUG | LD80011DUG | AlGaInP | Ultra Green | 573 | 405 | 607.5 |
| LD80011CPG | LD80011DPG | InGaN | Pure Green | 525 | 1620 | 4050 |
| LD80011CUB | LD80011DUB | InGaN | Ultra Blue | 470 | 405 | 607.5 |
| LD80011CUW | LD80011DUW | SMD | Ultra White | \ | 1350 | 1620 |
| Unit: | \ | \ | \ | nm | mcd | mcd |
1. CC=Common Cathode
2. CA=Common Anode
Where you can you use them?
You can use them indoor or semi-outdoor, such as:
Car Park Game Machine High-speed Rail Station LED clock for public places
Other available choices:
1. The internal circuit of 8 inch LED display can be customized according to customer's requirements.
2. Other available display dight height: 3 inch, 4 inch, 5 inch, 7 inch, 12 inch, 16 inch and 20 inch.
3. This 8 inch 7 segments display can be used both indoor and semi-outdoor LED screen.
