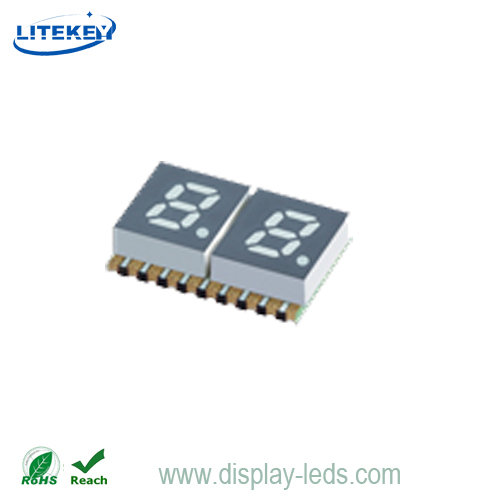

0.2 Inch Dual Digit 7 Segment SMD Display

Gray face and White Epoxy
Common Cathode or common anode SMD Display
Single color:Red, Orange, Green, Yellow, Pure green, Blue, White or Customized color
RoHS and REACH Compliant
High intensity and excellent reliability Digital Display
High quality, Low power consumption
IC compatible , Easy assembly

Quantity:
  • LSD2020A/B
  • LITEKEY
  • 8531200000


0.2 Inch Dual Digit Numeric SMD LED Display

0.2 inch 2 DIGIT SMD LED DISPLAY

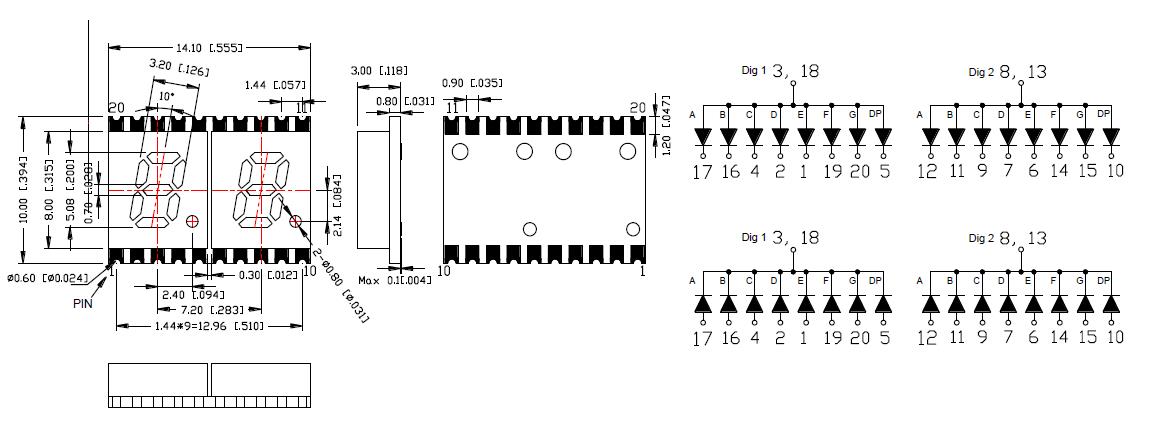

1. Outer Dumension and Internal Circuit Diagram

0.2 inch 2 digit SMD display

Notes:

All dimensions are in millimeters (inches) tolerance are 0.25mm(0.010) unless otherwise noted.


2. Selection Guide

Part No.

Chip

Iv@IF=20mA

Common

Anode

Common

Cathode

Material

Color

WLD

Per Chip

Min.

Typ.

LSD2020BR-G

LSD2020AR-G

AlGaInP

Super Red

640

-

8

LSD2020BUR-G

LSD2020AUR-G

AlGaInP

 Ultra Red

620

-

15

LSD2020BO-G

LSD2020AO-G

AlGaInP

 Orange

605

-

40

LSD2020BY-G

LSD2020AY-G

AlGaInP

Yellow

580

-

50

LSD2020BG-G

LSD2020AG-G

AlGaInP

Green

570

-

16

LSD2020BPG-G

LSD2020APG-G

InGaN

 Pure Green

520

-

35

LSD2020BB-G

LSD2020AB-G

InGaN

 Blue

470

-

25

LSD2020BW-G

LSD2020AW-G

InGaN

White

x0.27/y0.25

-

60

Unit:

\

\

\

nm

mcd

mcd


3. Electrical Characteristics & Absolute Maximum Ratings

Parameter

Electrical optical   Characteristics[1]

Absolute Maximum Ratings[1]

Emitted color

Forward Voltage

@ IF=20mA

Reverse
  Current
  VR=5V

Power Dissipation

DC Forward Current

Peak Forward Current[2]

Per Chip

Typ.

Max.

Super Red

2.0

2.6

30

60

20

100

 Ultra Red

2.0

2.6

30

65

20

100

 Orange

2.0

2.6

30

65

20

100

Yellow

2.0

2.6

30

65

20

100

Green

2.0

2.6

30

75

20

100

 Pure Green

3.0

3.6

30

85

20

100

 Blue

3.0

3.6

30

85

20

100

White

3.0

3.6

30

85

20

100

 Unit:

V

V

uA

mW

mA

mA


4. Application of  Surface-Mount LED Display

Home appliances.

Instrument panels.

Digital readout displays.


Contact us for more details.
