LSD2016A/B
LITEKEY
8531200000

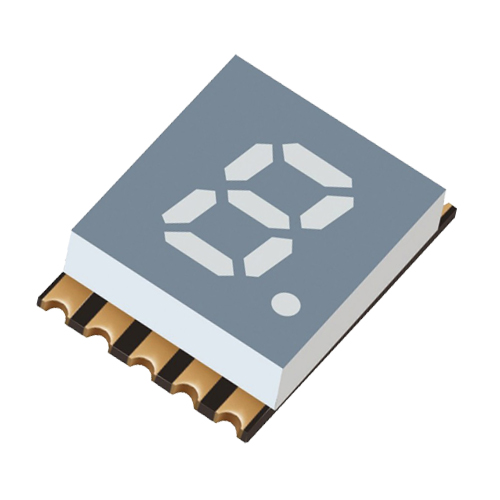

0.2 Inch Single Digit Numeric Ultra Thin SMD LED Display

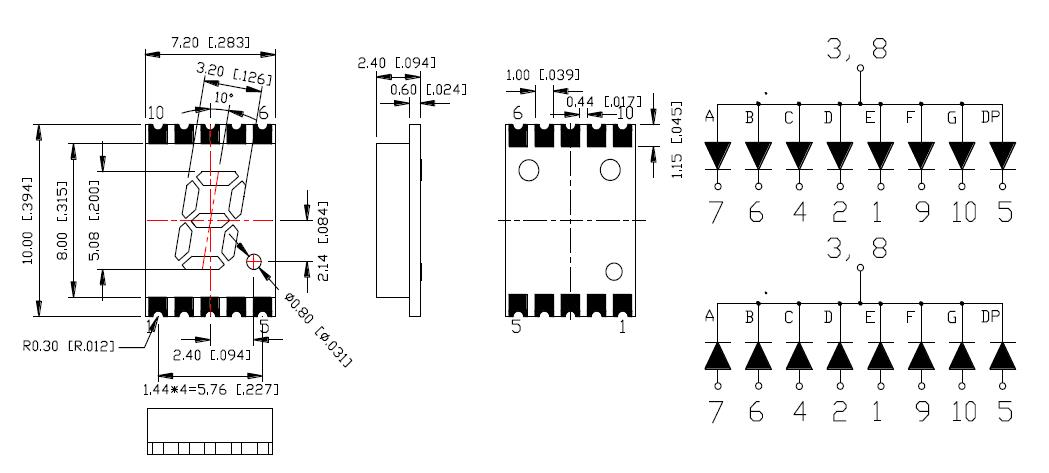

1. Outer Dumension and Internal Circuit Diagram
Notes:
All dimensions are in millimeters (inches) tolerance are 0.25mm(0.010) unless otherwise noted.
2. Selection Guide
Part No. | Chip | Iv@IF=20mA | ||||
Common Anode | Common Cathode | Material | Color | WLD | Per Chip | |
Min. | Typ. | |||||
LSD2016BR | LSD2016AR | AlGaInP | Super Red | 640 | - | 8 |
LSD2016BUR | LSD2016AUR | AlGaInP | Ultra Red | 620 | - | 15 |
LSD2016BO | LSD2016AO | AlGaInP | Orange | 605 | - | 40 |
LSD2016BY | LSD2016AY | AlGaInP | Yellow | 580 | - | 50 |
LSD2016BG | LSD2016AG | AlGaInP | Green | 570 | - | 16 |
LSD2016BPG | LSD2016APG | InGaN | Pure Green | 520 | - | 35 |
LSD2016BB | LSD2016AB | InGaN | Blue | 470 | - | 25 |
LSD2016BW | LSD2016AW | InGaN | White | x0.27/y0.25 | - | 60 |
Unit: | \ | \ | \ | nm | mcd | mcd |
3. Electrical Characteristics & Absolute Maximum Ratings
Parameter | Electrical optical Characteristics[1] | Absolute Maximum Ratings[1] | ||||
Emitted color | Forward Voltage @ IF=20mA | Reverse | Power Dissipation | DC Forward Current | Peak Forward Current[2] | |
Per Chip | Typ. | Max. | ||||
Super Red | 2.0 | 2.6 | 30 | 60 | 20 | 100 |
Ultra Red | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
Orange | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
Yellow | 2.0 | 2.6 | 30 | 65 | 20 | 100 |
Green | 2.0 | 2.6 | 30 | 75 | 20 | 100 |
Pure Green | 3.0 | 3.6 | 30 | 85 | 20 | 100 |
Blue | 3.0 | 3.6 | 30 | 85 | 20 | 100 |
White | 3.0 | 3.6 | 30 | 85 | 20 | 100 |
Unit: | V | V | uA | mW | mA | mA |
4. Application of Surface-Mount LED Display(SMD LED Display)
﹒Home appliances.
﹒Instrument panels.
﹒Digital readout displays.
Contact us for more details.
