LM12088A/BRG Series
PCS
1000pcs
PDF Datashheet Download Package Dimensions and Internal Circuit：
Notes:
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
Table1:

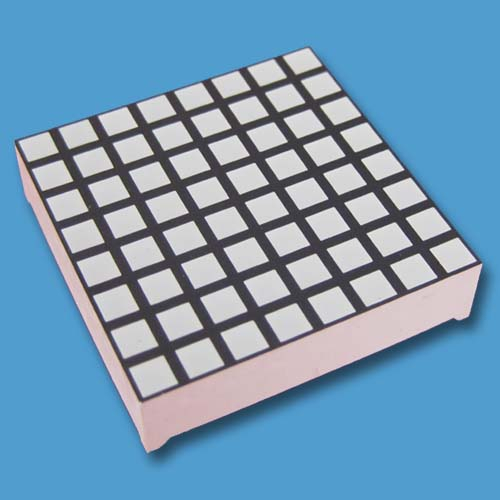

| 1.20 inch 8x8 Red-Green LED dot matrix module, Matrix Height: 32.00mm(1.20 inch), External Dimensions: 32.00x32.00x8.00mm (LxWxH) |
| |||||||
| Description | Part No. | Chip | Iv(mcd)@20mA | |||||
| Cathode Row | Anode Row | Material | Color | W LD (nm) | One Dot | |||
| Min. | Typ. | |||||||
| Standard Brightness | LM12088ARG | LM12088BRG | GaAlAs | Super Red | 640 | 8 | 10 | |
| GaP | Green | 568 | 7 | 9 | ||||
| Ultra-High Brightness | LM12088AURUG | LM12088BURUG | AlGaInP | Ultra Red | 640 | 30 | 45 | |
| AlGaInP | Ultra Green | 573 | 30 | 45 | ||||
You can use them indoor or semi-outdoor, such as:
indoor or semi-outdoor entertainment places Bus station
Car Park Game Machine High-speed Rail Station
PDF Datashheet Download Package Dimensions and Internal Circuit：
Notes:
1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.
2. Specifications are subject to change without notice.
3. The gap between the reflector and PCB shall not exceed 0.25mm.
Table1:
| 1.20 inch 8x8 Red-Green LED dot matrix module, Matrix Height: 32.00mm(1.20 inch), External Dimensions: 32.00x32.00x8.00mm (LxWxH) |
| |||||||
| Description | Part No. | Chip | Iv(mcd)@20mA | |||||
| Cathode Row | Anode Row | Material | Color | W LD (nm) | One Dot | |||
| Min. | Typ. | |||||||
| Standard Brightness | LM12088ARG | LM12088BRG | GaAlAs | Super Red | 640 | 8 | 10 | |
| GaP | Green | 568 | 7 | 9 | ||||
| Ultra-High Brightness | LM12088AURUG | LM12088BURUG | AlGaInP | Ultra Red | 640 | 30 | 45 | |
| AlGaInP | Ultra Green | 573 | 30 | 45 | ||||
You can use them indoor or semi-outdoor, such as:
indoor or semi-outdoor entertainment places Bus station
Car Park Game Machine High-speed Rail Station
