LLS3014UY-600
LITEKEY
8541410000
RoHS Compliant Yellow 3014 Top-Emitting SMD LED from Expert China Manufacturier
3014 LEDs extend LITEKEY's industry‑leading portfolio of lighting‑class LEDs to a broader set of applications.
It combines high efficacy and excellent value in a reliablepackage.
It also is optimized for low‑density lighting applications where high efficacy and smooth appearance
are critical, such as downlights, troffers, and panel lights.
The 3014 LEDs series offer high CRI and are optimized for lighting applications where good color quality is critical.
Product Parameters
3.0mm×1.4mm SMT LED,0.7mm thickness
High reliability
Low operating voltage, 0.1W Low power consumption, long life
PB Free products (Compliant with EU’s RoHS)
Suitable for all SMT assembly
Moisture sensitivity level: Level 5a
CHIP MATERIALS：
Dice Material : AIGaInP;
Light Color: Yellow;
Lens Color: Translucent colloid
·LED Photo

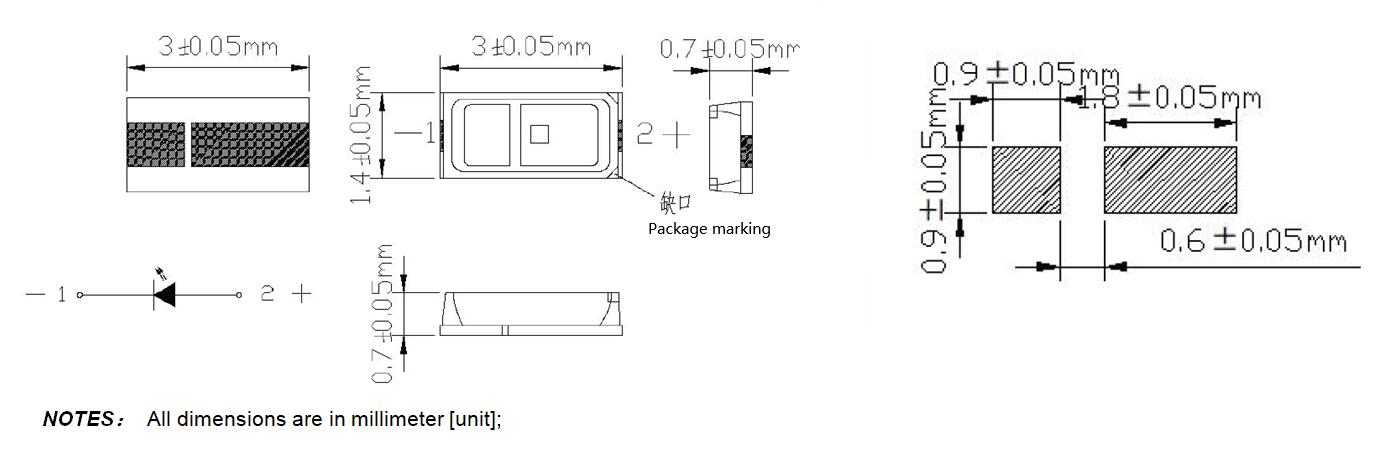

·Outline dimension
·Absolute Maximum Ratings (Ta=25℃)
Item | Symbol | Maximum | Unit |
Power Dissipation | Pd | 150 | mW |
Continuous Forward Current | IF | 30 | mA |
Pulsed Forward Current(1/10 Duty Cycle 0.1ms Pulse Width) | IFP | 90 | mA |
Reverse Voltage | VR | 5 | V |
Electrostatic Discharge(HBM) | ESD | 4000 | V |
Operating Temperature Range | Topr | -30 to+80 | ℃ |
Storage Temperature Range | Tstg | -30 to+85 | ℃ |
Junction Temperature | Tj | ≤125 | ℃ |
·Electrical/Optical Characteristics (Ta=25℃)
Item | Symbol | Condition | Min. | Typ. | Max | Unit |
Forward Voltage | VF | IF=30mA | 2.0 | -- | 2.6 | V |
Luminous Intensity | IV | IF=30mA | 600 | -- | 1000 | mcd |
Dominant Wavelength | λd | IF=30mA | 588 | -- | 592 | nm |
Viewing Angle | 2θ1/2 | IF=30mA | -- | 120 | -- | deg |
Reverse Current | IR | VR =5V | - | - | 10 | uA |
·Application
Channel Letter/Architectural Lighting/ variable message signs (VMS)
Price changers especially outdoor enviroment
Security Monitoring,car lights,3c indicator,traffic lights
7. Concentration: We focus on LED research and development, production and sales.
