LLS3030NWZ-1W 3V
LITEKEY
8541410000
RoHS Compliant White light efficiency 3030 SMD LED 1W 3V
3030 SMD LEDs extend LITEKEY's industry‑leading portfolio of lighting‑class LEDs to a broader set of applications.
It combines high efficacy and excellent value in a reliablepackage.
It also is optimized for low‑density lighting applications where high efficacy and smooth appearance
are critical, such as downlights, troffers, and panel lights.
The 3014 LEDs series offer high CRI and are optimized for lighting applications where good color quality is critical.
Product Parameters
3.2mm×3.0mm SMT LED,0.6mm thickness
High reliability
Low operating voltage, Low power consumption, long life
PB Free products (Compliant with EU’s RoHS)
Light Color: Nature White;
·LED Photo

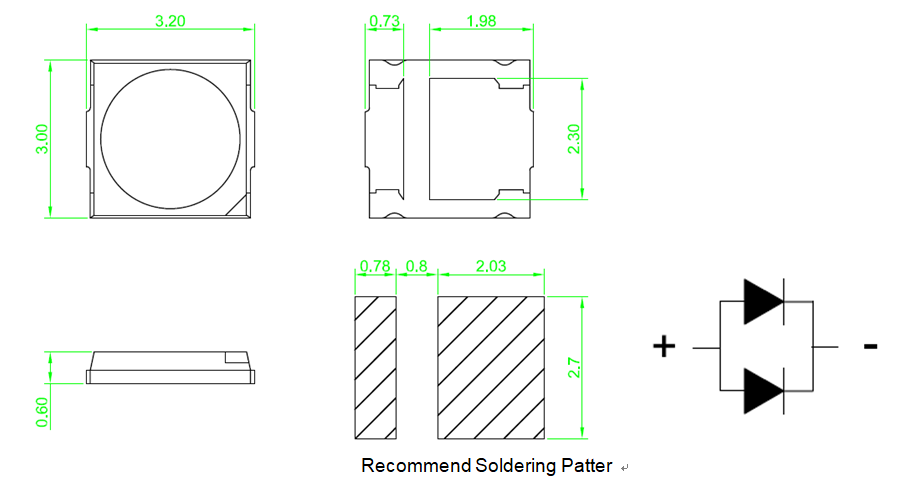

·Outline dimension
·Absolute Maximum Ratings (Ta=25℃)
Item | Symbol | Maximum | Unit |
Power Dissipation | PD | 1000 | mW |
Forward Current | IF | 350 | mA |
Peak Forward Current(1/10 Duty Cycle 0.1ms Pulse Width) | IFP | 400 | mA |
Reverse Voltage | VR | 5 | V |
Operating Temperature Range | Topr | -40 to+80 | ℃ |
Storage Temperature Range | Tstg | -40 to+80 | ℃ |
·Electrical/Optical Characteristics (Ta=25℃)
Item | Symbol | Condition | Min. | Typ. | Max | Unit |
Forward Voltage | VF | IF=350mA | 3.0 | -- | 3.3 | V |
Luminous Flux | LM | IF=350mA | 170 | -- | 180 | LM |
Chromaticity Coordinate | x | IF=350mA | -- | 0.380 | -- | -- |
y | IF=350mA | -- | 0.381 | -- | -- | |
Color Temperature | Tc | IF=350mA | -- | 4000 | -- | K |
Viewing Angle | 2θ1/2 | IF=350mA | - | 120 | - | deg |
Reverse Current | IR | VR =5V | - | - | 5 | uA |
Color Rendering Index | Ra | IF=350mA | -- | 80 | -- | -- |
·Application
Indoor display
Automotive lighting
General use
7. Concentration: We focus on LED research and development, production and sales.
