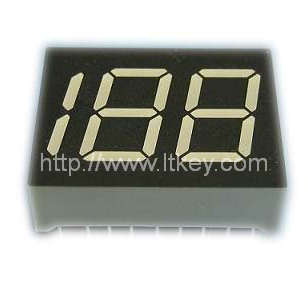

0.45 Inch 2.5 Digits numeric led Display

Share to:

0.45 Inch 2.5 Digits numeric led Display

Quantity:



Inquire Add to Basket

Model:
LD4531C/D Series
Min order:
1000pcs

DIP(through-hole)0.45 inch three digit 7 segment LED display; pin 2, 7 and 8 are common pins; static internal circuit PCB. Features: 1. 11.5 mm (0.45 inch) digit high 2. Excellent digit appearance 3. Wide viewing angle 4. Range of emitted colors 5. I.C. compatible 6. Low power consumption 7. Black face,White segment 8. RoHS compliant

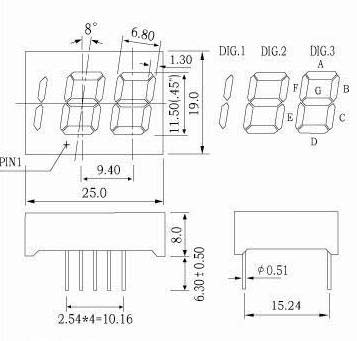

Package Dimensions and Internal Circuit：

Notes:

1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.

2. Specifications are subject to change without notice.

3. The gap between the reflector and PCB shall not exceed 0.25mm.

Table1:

Three Digits 7 Segment LED Display, Digit Height: 11.5mm(0.45inch), External Dimensions: 25x19x8mm (LxWxHmm)
Part No.		Chip			Iv@IF=20mA		Iv@IF=20mA
Common Cathode	Common Anode	Material	Color	WLD	One Seg		One DP
Common Cathode	Common Anode	Material	Color	WLD	Min.	Typ.	Min.	Typ.
LD4531CR	LD4531DR	GaAlAs	Super Red	640	8	10	8	10
LD4531CD	LD4531DD	GaAlAs	Hi-Red	640	18	25	18	25
LD4531CO	LD4531DO	GaAsP	Orange	625	7	9	7	9
LD4531CY	LD4531DY	GaAsP	Yellow	588	8	10	8	10
LD4531CG	LD4531DG	GaP	Green	568	7	9	7	9
LD4531CUR	LD4531DUR	AlGaInP	Ultra Red	640	30	45	30	45
LD4531CUO	LD4531DUO	AlGaInP	Ultra Orange	625	45	60	45	60
LD4531CUA	LD4031DUA	AlGaInP	Ultra Amber	605	30	45	30	45
LD4531CUY	LD4531DUY	AlGaInP	Ultra Yellow	595	30	45	30	45
LD4531CUG	LD4531DUG	AlGaInP	Ultra Green	573	30	45	30	45
LD4531CPG	LD4531DPG	InGaN	Pure Green	525	120	300	120	300
LD4531CUB	LD4531DUB	InGaN	Ultra Blue	470	30	45	30	45
LD4531CUW	LD4531DUW	InGaN	Ultra White	\	100	120	100	120
Unit:	\	\	\	nm	mcd	mcd	mcd	mcd

Table2:

Color		Electrical optical Characteristics^[1]			Absolute Maximum Ratings^[1]
		Forward Voltage@ IF=20mA		Reverse Current VR=5V	Power Dissipation	DC Forward Current	Peak Forward Current^[2]
		Typ.	Max.	Reverse Current VR=5V	Power Dissipation	DC Forward Current	Peak Forward Current^[2]
Super Red	Per Seg.	1.8	2.2	30	60	25	100
Super Red	Per DP	1.8	2.2	30	60	25	100
Hi-Red	Per Seg.	1.8	2.2	30	60	25	100
Hi-Red	Per DP	1.8	2.2	30	60	25	100
Orange	Per Seg.	2.1	2.5	30	80	30	100
Orange	Per DP	2.1	2.5	30	80	30	100
Yellow	Per Seg.	2.1	2.5	30	80	30	100
Yellow	Per DP	2.1	2.5	30	80	30	100
Green	Per Seg.	2.2	2.5	30	80	30	100
Green	Per DP	2.2	2.5	30	80	30	100
Ultra Red	Per Seg.	1.9	2.6	30	60	30	100
Ultra Red	Per DP	1.9	2.6	30	60	30	100
Ultra Orange	Per Seg.	2	2.6	30	65	30	100
Ultra Orange	Per DP	2	2.6	30	65	30	100
Ultra Amber	Per Seg.	2	2.6	30	65	30	100
Ultra Amber	Per DP	2	2.6	30	65	30	100
Ultra Yellow	Per Seg.	2	2.6	30	65	30	100
Ultra Yellow	Per DP	2	2.6	30	65	30	100
Ultra Green	Per Seg.	2.1	2.6	30	75	30	100
Ultra Green	Per DP	2.1	2.6	30	75	30	100
Pure Green	Per Seg.	3.5	4	30	110	30	100
Pure Green	Per DP	3.5	4	30	110	30	100
Ultra Blue	Per Seg.	3.5	4	30	120	30	100
Ultra Blue	Per DP	3.5	4	30	120	30	100
Ultra White	Per Seg.	3.5	4	30	120	30	100
Ultra White	Per DP	3.5	4	30	120	30	100
Unit:	\	V	V	uA	mW	mA	mA
