0.52 inch 3 digits 7 segment Display

Quantity:



Inquire Add to Basket

Model:
LD5231A/B Series
Min order:
1000pcs

Pin 8, 9 and 12 are common pins; static internal circuit PCB; 0.52 inch three digit seven segment LED display; both CA and CC versions are available. Features: 1. 13.20 mm (0.52inch) digit high 2. Excellent digit appearance 3. Wide viewing angle 4. Range of emitted colors 5. I.C. compatible 6. Low power consumption 7. Black face,White segment 8. RoHS compliant

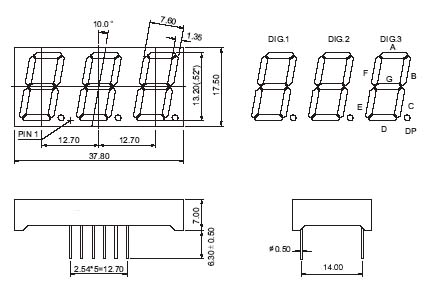

Package Dimensions and Internal Circuit：

Notes:

1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.

2. Specifications are subject to change without notice.

3. The gap between the reflector and PCB shall not exceed 0.25mm.

Table1:

Three digits 7 Segment LED Display, Digit Height: 13.20mm(0.52inch), External Dimensions: 37.80x17.50x7.00mm (LxWxHmm)
Part No.		Chip			Iv@IF=20mA		Iv@IF=20mA
Common Cathode	Common Anode	Material	Color	WLD	One Seg		One DP
Common Cathode	Common Anode	Material	Color	WLD	Min.	Typ.	Min.	Typ.
LD5231AR	LD5231BR	GaAlAs	Super Red	640	8	10	8	10
LD5231AD	LD5231BD	GaAlAs	Hi-Red	640	18	25	18	25
LD5231AO	LD5231BO	GaAsP	Orange	625	7	9	7	9
LD5231AY	LD5231BY	GaAsP	Yellow	588	8	10	8	10
LD5231AG	LD5231BG	GaP	Green	568	7	9	7	9
LD5231AUR	LD5231BUR	AlGaInP	Ultra Red	640	30	45	30	45
LD5231AUO	LD5231BUO	AlGaInP	Ultra Orange	625	45	60	45	60
LD5231AUA	LD5231BUA	AlGaInP	Ultra Amber	605	30	45	30	45
LD5231AUY	LD5231BUY	AlGaInP	Ultra Yellow	595	30	45	30	45
LD5231AUG	LD5231BUG	AlGaInP	Ultra Green	573	30	45	30	45
LD5231APG	LD5231BPG	InGaN	Pure Green	525	120	300	120	300
LD5231AUB	LD5231BUB	InGaN	Ultra Blue	470	30	45	30	45
LD5231AUW	LD5231BUW	InGaN	Ultra White	\	100	120	100	120
Unit:	\	\	\	nm	mcd	mcd	mcd	mcd

Table2:

Parameter		Electrical optical Characteristics^[1]			Absolute Maximum Ratings^[1]
Emitted color		Forward Voltage @ IF=20mA		Reverse Current VR=5V	Power Dissipation	DC Forward Current	Peak Forward Current^[2]
Emitted color		Typ.	Max.	Reverse Current VR=5V	Power Dissipation	DC Forward Current	Peak Forward Current^[2]
Super Red	Per Seg.	1.8	2.2	30	60	25	100
Super Red	Per DP	1.8	2.2	30	60	25	100
Hi-Red	Per Seg.	1.8	2.2	30	60	25	100
Hi-Red	Per DP	1.8	2.2	30	60	25	100
Orange	Per Seg.	2.1	2.5	30	80	30	100
Orange	Per DP	2.1	2.5	30	80	30	100
Yellow	Per Seg.	2.1	2.5	30	80	30	100
Yellow	Per DP	2.1	2.5	30	80	30	100
Green	Per Seg.	2.2	2.5	30	80	30	100
Green	Per DP	2.2	2.5	30	80	30	100
Ultra Red	Per Seg.	1.9	2.6	30	60	30	100
Ultra Red	Per DP	1.9	2.6	30	60	30	100
Ultra Orange	Per Seg.	2	2.6	30	65	30	100
Ultra Orange	Per DP	2	2.6	30	65	30	100
Ultra Amber	Per Seg.	2	2.6	30	65	30	100
Ultra Amber	Per DP	2	2.6	30	65	30	100
Ultra Yellow	Per Seg.	2	2.6	30	65	30	100
Ultra Yellow	Per DP	2	2.6	30	65	30	100
Ultra Green	Per Seg.	2.1	2.6	30	75	30	100
Ultra Green	Per DP	2.1	2.6	30	75	30	100
Pure Green	Per Seg.	3.5	4	30	110	30	100
Pure Green	Per DP	3.5	4	30	110	30	100
Ultra Blue	Per Seg.	3.5	4	30	120	30	100
Ultra Blue	Per DP	3.5	4	30	120	30	100
Ultra White	Per Seg.	3.5	4	30	120	30	100
Ultra White	Per DP	3.5	4	30	120	30	100
Unit:	\	V	V	uA	mW	mA	mA
