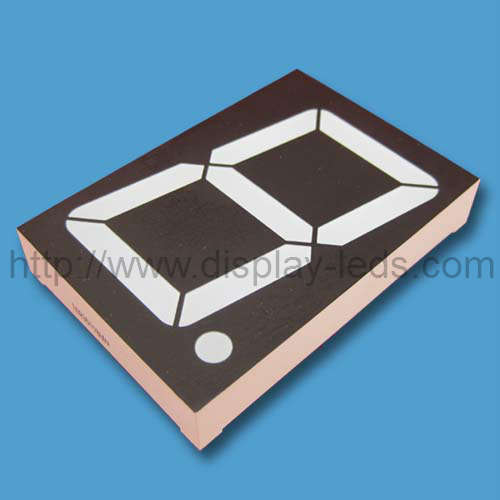

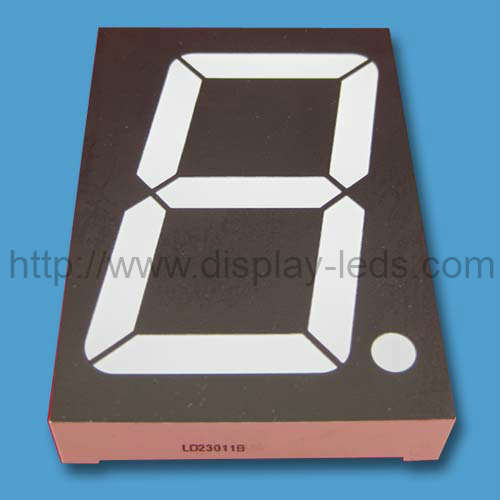

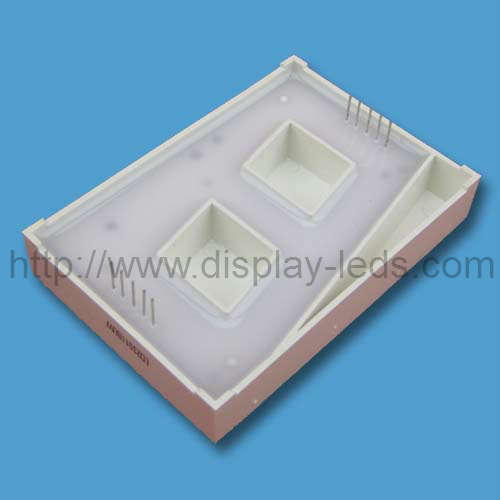

2.3 inch (56.8 mm) dual color 7 segment LED Display

Share to:

2.3 inch (56.8 mm) dual color 7 segment LED Display

Quantity:



Inquire Add to Basket

Model:
LD23011A/BRG Series
Min order:
1000pcs

Pin 1 and 5 are common pins; dual emitted colors; static internal circuit PCB; 2.3 inch single digit 7 segment LED display; both CA and CC versions are available.
Features:
1. 56.8 mm (2.3 inch) digit high
2. Excellent digit appearance
3. Wide viewing angle
4. Range of emitted colors
5. I.C. compatible
6. Low power consumption
7. Black face,White segment
8. RoHS compliant

Package Dimensions and Internal Circuit：

Notes:

1. All dimensions are in millimeters(inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.

2. Specifications are subject to change without notice.

3. The gap between the reflector and PCB shall not exceed 0.25mm.

Table1:

Single Digit 7 Segment LED Display, Digit Height: 38.00mm(1.80inch), External Dimensions: 38.00x56.00x11.00mm (LxWxHmm)
Description	Part No.		Chip			Iv(mcd)@20mA
	Cathode Row	Anode Row	Material	Color	W LD (nm)	One Seg(DP)
						Min.	Typ.
Standard Brightness	LD23011ARG	LD23011BRG	GaAlAs	Super Red	640	18(8)	22.5(10)
			GaP	Green	568	15.75(7)	20.25(9)
Ultra-High Brightness	LD23011AURUG	LD23011BURUG	AlGaInP	Ultra Red	640	67.5(30)	101.25(45)
			AlGaInP	Ultra Green	573	67.5(30)	101.25(45)
