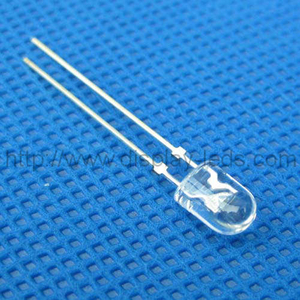

5 mm Round Green Traffic LED Lamp

Availability:
Quantity:

5mm round LED lamp, traffic LED lamp with blue green emitting color.

Features:
Single color: blue green
High bright output
Large view angle: 26 degree

Device Outline: 5mm Round Type
Lens type: water clear


RoHS and REACH  Compliance

Package Dimensions of 5mm round LED:
 5mm round LED lamp dimensions



   Absolute maximum ratings  (Ta=25℃)


         Parameter          Symbol          Test Condition          Values          Unit
         Min          Max
         Reverse Voltage          VR          IR=30μA          5           ---          V
         Forward Current          IF          ---          ---          25          mA
         Power Dissipation          Pd          ---          ---          90          mW
         Pulse Current          Ipeak          Duty=0.1mS, 1kHz          ---          100          mA
         Operating Temperature          Topr          ---          -40          +85
         Storage Temperature          Tstr          ---          -40          +100
         Electrostatic Discharge Rank          ESD          MIL-STD883E(HBM)          Class1          ---



   Electrical and optical characteristics  (Ta=25℃)


         Parameter          Symbol          Test Condition          Values          Unit
         Min.          Typ.          Max.
         Forward Voltage          VF          IF=20mA                    3.2          3.6          V
         Reverse Current          IR          VR=5V                              30          μA
         Dominate Wavelength          λ d          IF=20mA                    505                    nm
         Peak Wavelength          λ P          IF=20mA                    500                    nm
         Spectral Line half-width          △λ          IF=20mA                    35                    nm
         Luminous Intensity
         LLR513BGC
         -G          Iv          IF=20mA          6000          8000                    mcd
         -H          8000          10000
         Viewing Angle          2θ1/2          IF=20mA                    26                    Deg.

 Application:
   5mm traffic lamp2
   Green Traffic Lamps
